75mm IEC Test Equipment , Wire Clamping Damage To And Accidental Loosening Of Conductors 10 ± 2 RPM Flexion Tester

Brand Name : HongCe

Model Number : HC9903A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 10 set /month

Delivery Time : 30 days

Packaging Details : plywood

Price : Negotiatable

standard : IEC60947-1

Test height : 250~500mm

Diameter of gyration : 75mm

Test rate : 10±2 RPM

Diameter of ferrule hole : 6.5~28.6mm

Test times : 0～9999

Contact Now

IEC60947 Wire Clamping Damage To And Accidental Loosening Of Conductors Flexion Tester 75mm

Product Introduction

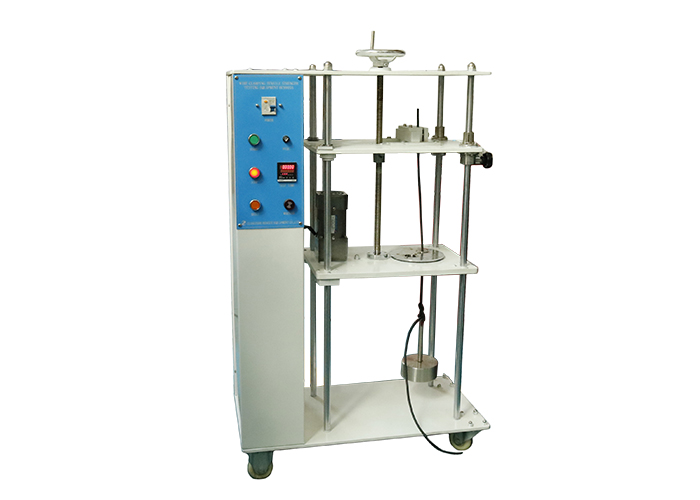

This testing machine is also called the test apparatus for checking damage degree of wire which confirms to standards IEC60947-1 clause 8.2.4.3 ,figure 1 table 5. This compliance is used for judging whether the design and the structure of the clamping screw terminal is correspondent with the requirement of non over-damage to the wire. Besides, it is also used to check whether the clamping screw terminal can bear the stress during the process of normal usage.

The testing times can be preset before the test, and the compliance stops automatically with the alarm when the testing times are reached.

Technical Parameters

Model HC9903A
Test rate 10±2 RPM
Diameter of gyration 75mm
Test times 0～9999
Weights 0.2,0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg (weights superimposed)
Test height 250~500mm
Diameter of ferrule hole 6.5~28.6mm, 12 pc
Standards IEC60998-2-2,IEC60947-1

Notice:

(1)This device equipment with 18 wire bushes of 9 size, diameter: 6.5mm, 9.5mm, 13mm, 14.5 mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm and 28.6mm.

(2)Rotate radius of turn table center hole is 38mm, user can select appropriate wire bush according to test requirements for test sample.

(3)If the bush hole not big enough, need to bundle the wire into the hole, can replace a bigger wire bush

(4)Height (H) deviation of ±15mm

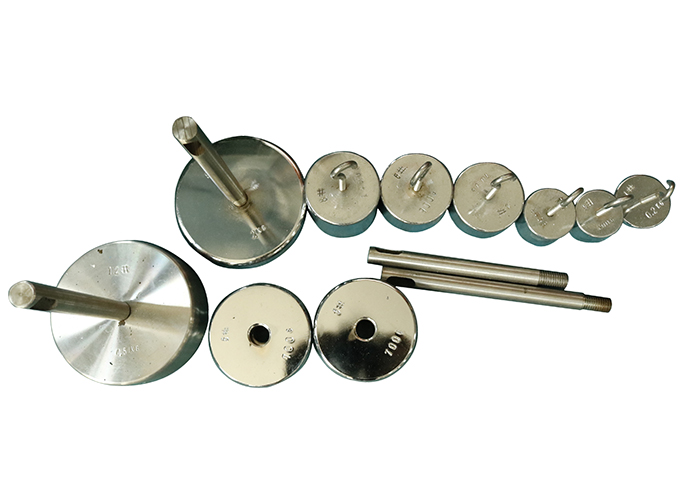

Table 1: weights list

No. Weight mass(kg) Quantity
1# 0.2 with hook 1 pc
2# 0.3 with hook 1 pc
3# 0.4 with hook 1 pc
4# 0.7 with hook 1 pc
5# 0.7 through hole 2 pc
6# 0.9 with hook 1 pc
7# 0.9 through hole 2 pc
8# 1.4with hook 1 pc
9# 2 with hook 1 pc
10# 2 through hole 1 pc
11# 2.3 through hole 1pc
12# 4.5 with hook 1 pc
13# 4.5 through hole 1pc
14# 6.8 with hook 1 pc
15# 6.8 through hole 1 pc
16# 8 .2with hook 1 pc

Table 2: weights collocation table

Required mass (kg) Collocation
0.2 1#
0.3 2#
0.4 3#
0.7 4#
0.9 6#
1.4 8#
2 9#
2.9 9#+7#
4.5 12#
5.9 12#2*5#
8.6 14#+2*7#
9.5 9#+13#+11#+5#
10.4 12#+13#+2*5#
14 14#+13#+10#+5#
15 16#+15#
16.8 16#+13#+11#+2*7#
20 16#+15#+11#+10#+5#
22.7 16#+15#+13#+11#+7#
